Kits for V2 Nemo Angle Grinder

Replacement kits for Nemo Angle Grinder (AG-22V-6Li-50 V2)


Kit Name Info Quantity Price

22V 3Ah Pressure Intake/Out take component

SKU: RK06014
$63.00

22V 6Ah Pressure Intake/Out take component

SKU: RK06015
$66.00

Body basement (with waterproof connector)

SKU: RK06011
  • Replace the old one
$64.00

Battery waterproof connector

SKU: RK06010

1 Battery waterproof connector kit

$13.00

Handle

SKU: SN06029
$2.00

Wheel guard

SKU: SN06031
$4.00

Spanner

SKU: SN06042
$3.00

Pump

SKU: SP91101
$65.00

Case

SKU: SP91102
$117.00

AG EVA foam 3AH

SKU: SN06055
$26.00

AG EVA foam 6AH

SKU: SN06055
$26.00

Motor

SKU: RK06004
  • A motor subassembly
  • 2x Radiate film
  • A bottle of radiated grease
  • 10ml Lubricant
  • 2x M5x16 Hexagon socket head cap screws
  • 5x M4x12 Hexagon socket head cap screws
  • 2x M4x16 Hexagon socket head cap screws
  • 5x M3x8 Hexagon socket head cap screws
  • 1x 2mm Allen key & 1x 3mm Allen key & 1x 4mm Allen key

Reasons:
1. Motor doesn’t work

Repair instructions video

$33.00

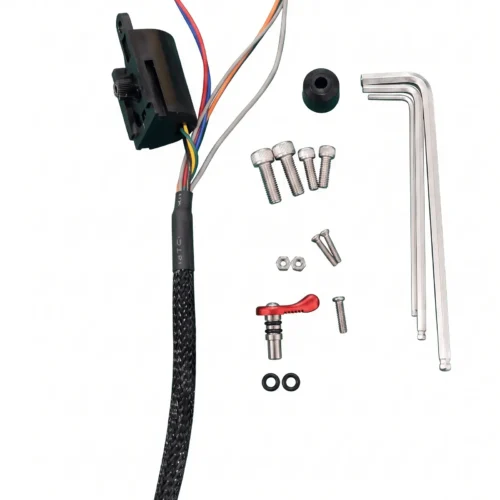

Speed trigger assembly

SKU: RK06008
  • A speed trigger assembly
  • 2x M3x6 Hexagon socket button head screws
  • 2x M5x16 Hexagon socket head cap screws
  • 3x M4x12 Hexagon socket head cap screws
  • 2x M4x16 Hexagon socket head cap screws
  • 1x red trigger
  • 2ml Sealing grease
  • 200mm Solder bar , 10x φ2.0shrink tubes
  • 4x φ4xφ1.2 O ring
  • 1x 2mm Allen key & 1x 3mm Allen key & 1x 4mm Allen key

Reasons:
1. Leak
2. Safety switch doesn’t work
3. Axle doesn’t turn

Repair instructions video

$19.00

Safe trigger assembly

SKU: RK06007
  • A safe trigger assembly
  • 200mm Solder bar
  • 10x φ2.0shrink tubes
  • 10ml Lubricant
  • 4x M4x16 Hexagon socket head cap screws
  • 4x M4x12 Hexagon socket head cap screws
  • 1x 3mm Allen key

Reasons:
1. Safety switch doesn’t work

Repair instructions video

$4.00

Gear cap assembly

SKU: RK06005
  • A gear cap subassembly
  • 4x M4x16 Hexagon socket head cap screws;
  • 1xφ6.2xφ0.8×20 Spring
  • 2x φ86xφ1.8 O ring
  • 10ml Lubricant
  • 1x 3mm Allen key

Reasons:
1. Leak
2. Safety switch doesn’t work
3. Axle doesn’t turn

Repair instructions video

$116.00

Stop cap

SKU: RK06009
  • A Stop cap
  • 1x φ5.5xφ0.5×20 Spring
  • 2ml Machine oil
  • 2x M4x12 Hexagon socket head cap screws
  • 1x 3mm Allen key

Reasons:
1. Stop cap cannot lock axle up
2. Stop cap leak

Repair instructions video

$10.00

Battery lock

SKU: RK06001
  • 2x clips
  • 2x φ3.0×44 Pin
  • 8X φ3.0 Jump ring

Reasons:
1. Battery lock cannot lock up
2. Battery lock broken

Repair instructions video

$15.00

ESC

SKU: RK06006
  • ESC
  • 2x M5x16 Hexagon socket head cap screws
  • 200mm Solder bar
  • 10x φ2.0shrink tubes
  • 2x φ35 shrink tubes
  • 1x 4mm Allen key

Reasons:
1. ESC doesn’t work

Repair instructions video

$129.00

Body basement (With ESC)

SKU: RK06002
  • A Body basement subassembly
  • 1x φ96×3.4 O ring
  •  2x M5x16 Hexagon socket head cap screws
  • 200mm Solder bar
  • 10x φ2.0shrink tubes
  • 1x 4mm Allen key

Reasons:
1. Body basement leak
2. Junction burns out resulting Body in bad contacts
3. ESC doesn’t work

Repair instructions video

$199.00

Body basement (With ESC and PCB V2)

SKU: RK06022

Reasons:
1. Body basement leak
2. Junction burns out resulting in bad contacts
3. ESC doesn’t work
4.PCB board doesn’t work

Repair instructions video

$332.00

Valve

SKU: RK01001
  • A valve
  • A valve cap
  • 2xφ5xφ2.5 O rings

Reasons:
1. Valve cap leak
2. Fail to inflate

Repair instructions video

$19.00
